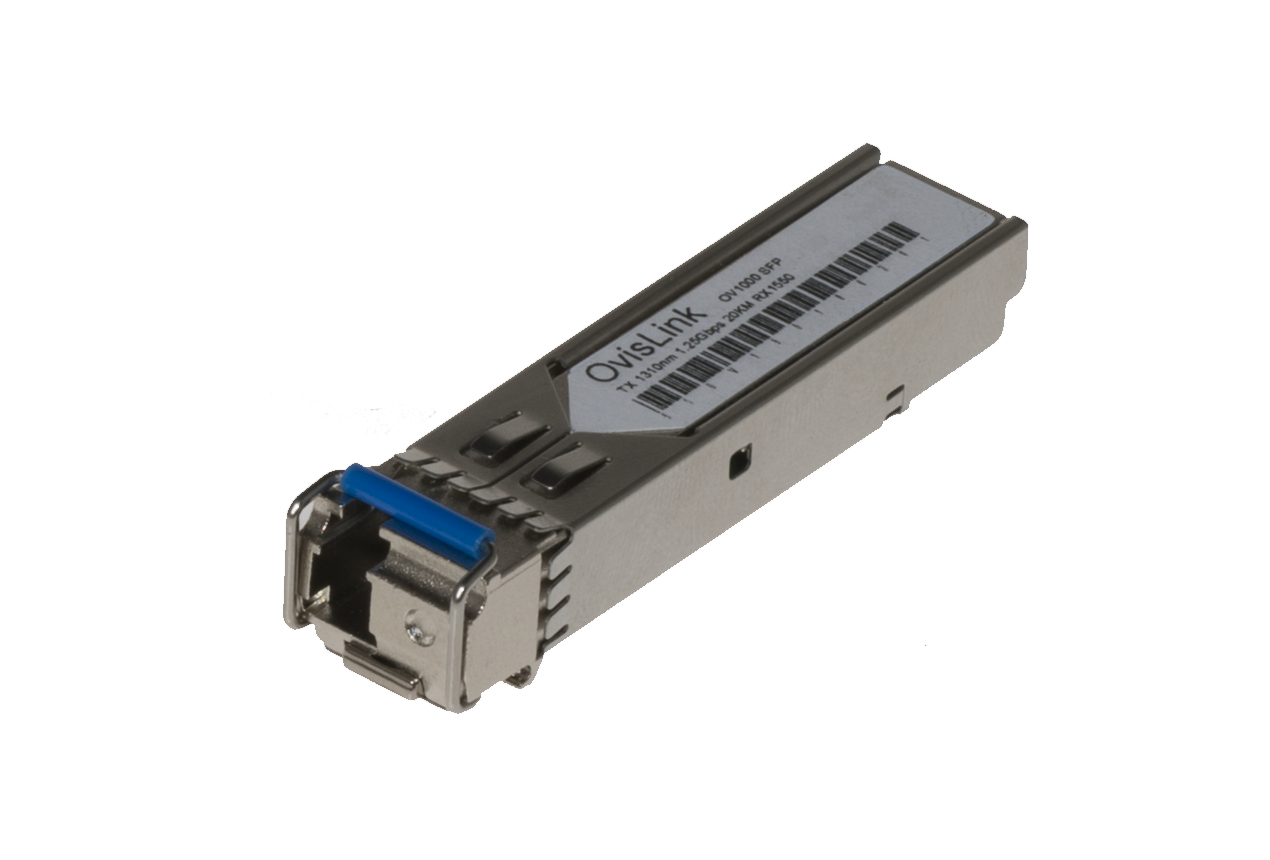

The Small Form-Factor Pluggable (SFP) is a single-mode fiber SFP that plugs into an ADTRAN optical interface designed to accept SFPs. The SFP provides a single optical interface to a physical interface, and is intended for use with a Gigabit Passive Optical Network (GPON) module.Installed into an appropriate module, the SFP provides a GPON interface to the supporting system.

OV2000 is designed for use in GPON ONT applications and has a Digital Diagnostic Monitoring (DDM) function with internal calibration.

• Module Type:SFP
• SM/MM: Singel Mode fiber
• Single-fiber
• SC connector
• GPON ONU application
• 20km distance
• SFF 8472 Compliant
• Optical Budget:26 dB (+/-1)
• Tx Central Wavelength: 1310 nm
• Tx Output optical power: +0.5 dBm to +5.0 dBm
• Tx Spectral width: 1 nm
• Rx Central wavelength: 1490 nm
• Input optical power: –8.0 dBm to –27 dBm
• Receiver Overload: –8 dBm
• Receiver Sensitivity: –27 dBm
