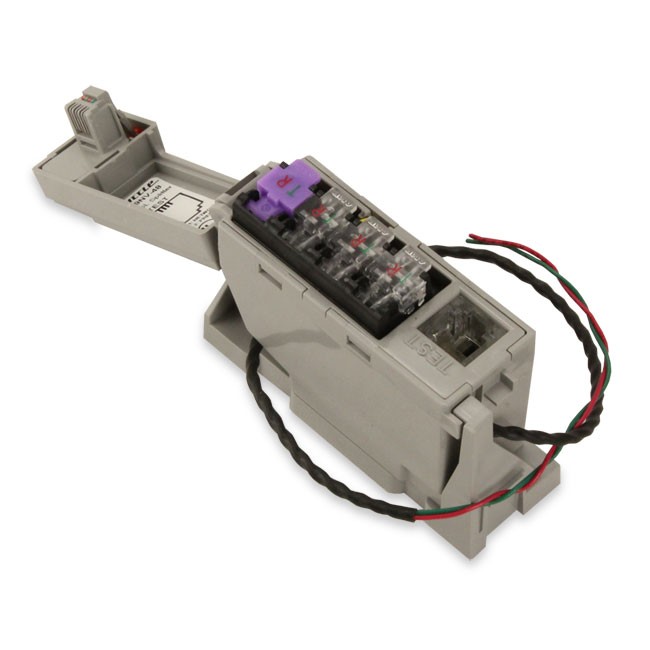

Suttle Tool-less VDSL NID Splitter


  • Tool-less capability with easy viewing for proper connections
  • Accepts 22-26 AWG wire
  • Audible click toggle upon installation
  • Convenient mounting for most NID styles*
  • Ring Trip Mitigation for superior IPTV delivery
  • Cradle detaches and allows placement on premise walls separate from NID
  • Compatible for ADSL to VDSL2 technologies up to 30MHz (30a profile)

The FutureLinkTM VDSL NID splitter is designed to provide POTS separately from VDSL signals at the point of entry to a subscriber. The Ring Trip Mitigation feature allows uninterrupted IPTV services during phone calls. Its unique tool-less technology is designed to fit inside most NIDs.
A toggle design allows three pair tool-less voice distribution and one pair tool-less data distribution. Clear toggles allow the installer to clearly see that the connection has been established. The splitter supports all ADSL and VDSL2 technologies up to 30 MHz (30a Profile).

  • DC Loop Current:0 – 100mA
  • DC Loop Voltage: 0 to -60V
  • DC Resistance: ≤ 25 Ω
  • Insertion Loss: < 0.5dB
  • Attenuation Distortion: < 1.0dB
  • Delay Distortion: < 200us
  • ADSL Band Attenuation: > 65dB @ 30kHz – 300kHz
  • ADSL Band Attenuation:> 55dB @ 300kHz – 30MHz
  • Return Loss :6dB ERL, 5dB SRL-Low, 3dB SRL-High
  • Longitudinal Balance: > 57dB
  • Lead Wire Length: 12 inches
