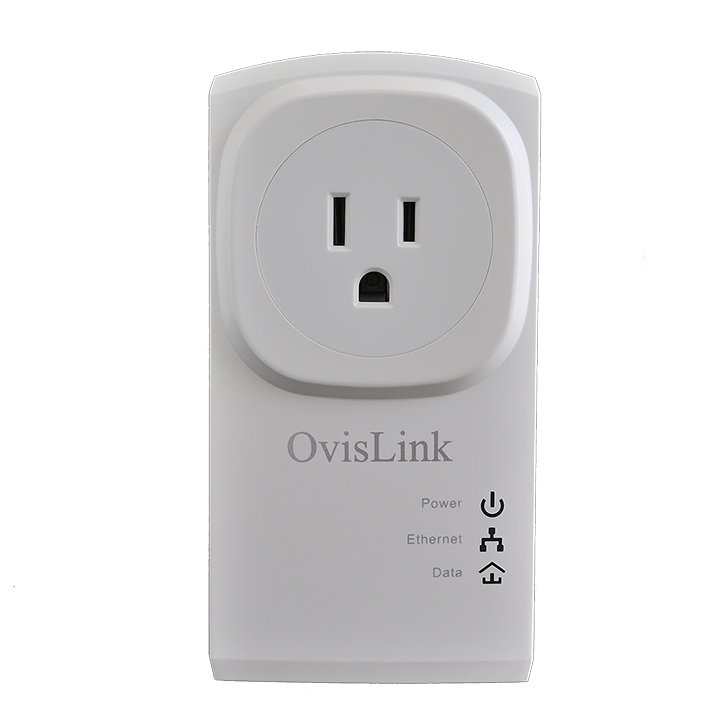

OVISLINK Powerline Passthrough 200Mbps Adapter


  • Peak PHY Rate 200Mbps
  • Shared broadband internet access
  • Higher data rate broadband sharing for power line LAN
  • Backbone for Wireless and Wireless Extender
  • TV over IP (IPTV) and Voice over Internet Protocol (VoIP)
  • High Definition (HD) and Standard Definition (SD) video distribution
  • Video surveillance
  • Online Gaming

200Mbps powerline passthrough adapter is designed for PHY rate up to 200Mbps and throughput up to 96Mbps across the household power line. Embedding high integrated BCM60321 chipset, the adapter is low in power consumption and small in size.
Every power socket could become a network connection so even complicated corners that used to be unreachable with wiring is now able to go online conveniently, which is suitable and secure for use in a wide range of both residential (in-home) and commercial (offices, apartments, hotels, warehouses) network applications.

  • ChipsetBCM60321
  • Peak PHY Rate 200Mbps
  • Peak Throughput 96Mbps UDP/90Mbps TCP
  • Range up to 300m
  • Security 128-bit AES
  • Modulation Scheme4096/1024/256/64/16/8-QAM,QPSK,BPSK and ROBO
  • Frequency 2MHz~28MHz
  • Media Access priority based CSMA/CA
  • Max 8 PLC Nodes
  • Max 32 IGMP Streams
  • Suooort IPv6/MLDv2 Support
  • Suooort QoS
  • One RJ45 (IEEE 802.3 10/100Mbps)
  • Outlet current 220VAC 16A Maximum, 110VAC 20A Maximum
  • Power Consumption 2.5W Operation / 1.21W Idle / 0.48W Standby
