Overview

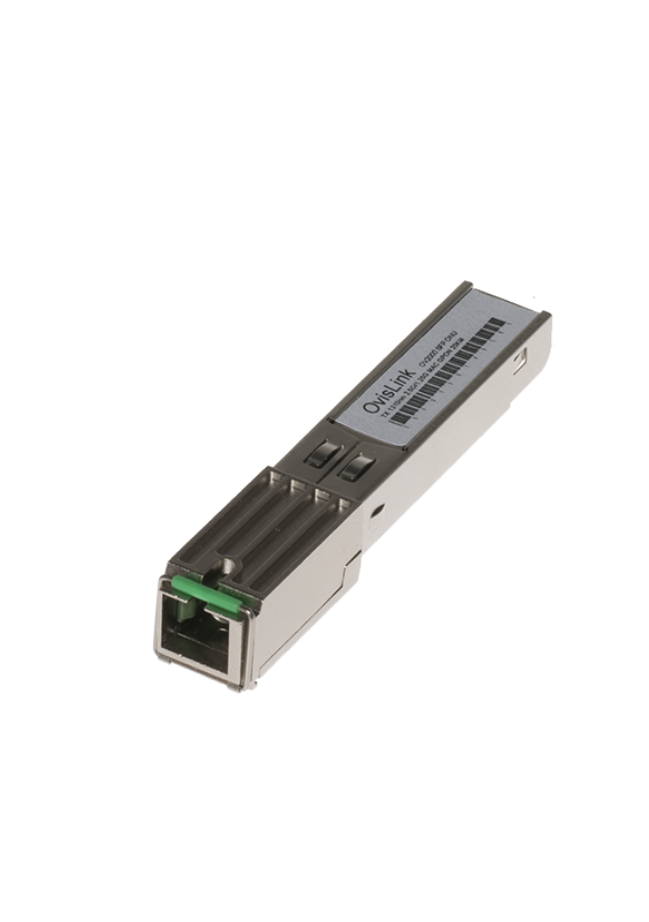

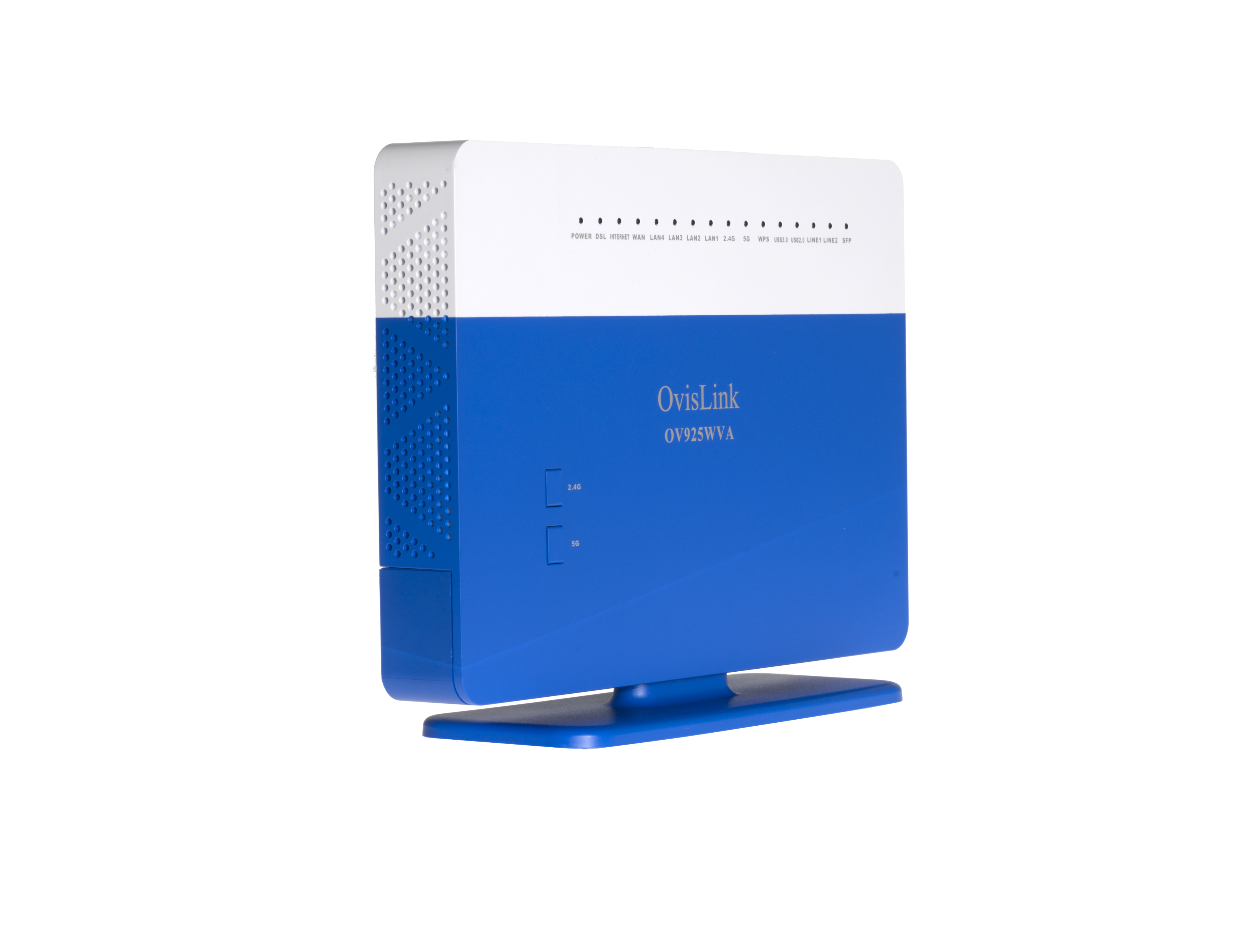

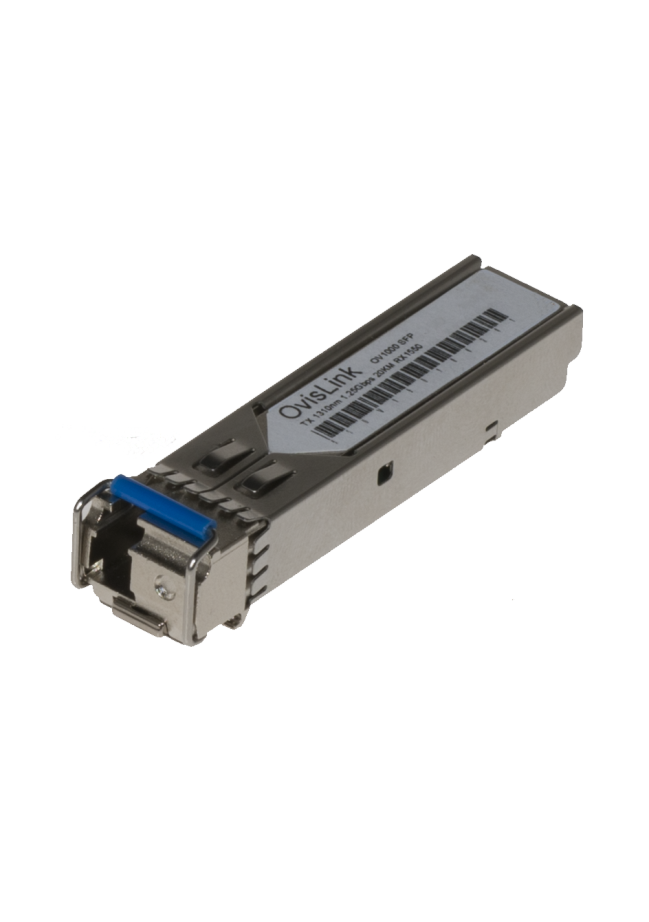

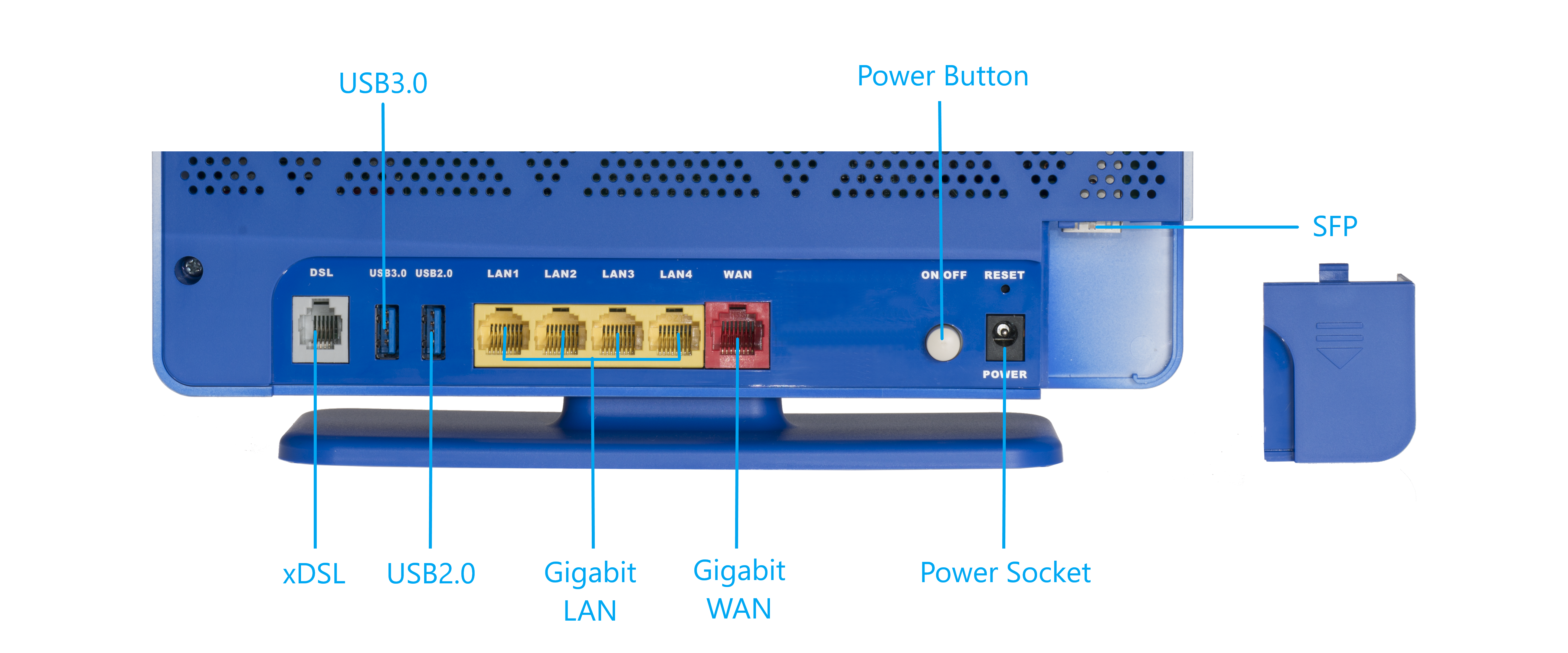

The OV925WVA is a high-speed dual-band Wireless G.fast/HTTx Gateway , which is an advanced all-in-one gateway that aslo supports VDSL 17(a)Bonding and 35(b) single line. OV925WVA will be used in a Fiber To The Distribution set-up in which it must be able to interface to the Distribution Point Unit in the Wide Area Network via the lastest ITU-T standard of G.fast. OV925WVA is also a GPON/Active Ethernet Gateway by using the SFP of GPON/Active Eherenet. It can provide users with broadband Internet access capability, high quality voice & video services. OV925WVA is the solution that can provide gigabit speeds by using both copper and fiber. The SFP port allows for deployments of Active Ethernet, GPON Fiber, G.fast, and more!

  • IPv6 Ready

Features & Applications

Specifications

Wireless Features :

IEEE 802.11b、IEEE 802.11g、IEEE 802.11n and IEEE 802.11ac 3x3 MIMO @ 5GHz 3x3 MIMO @ 2.4GHz

Beam forming to any 802.11 device

Support auto channeling

64/128-bit WEP, 802.1x, WPA, and WPA2 for wireless security

Support eight SSID.

RTS/CTS, Segment function.

MAC Access/Deny List.

Routing Features :

IP routing & transparent bridging

Source and destination routing

DHCP server/client

Support UPnP

NAT,NAPT.

DMZ

IP QoS

Protocol Features

RFC 2684 multiprotocol Encapsulation over ATM Adaptation Layer 5

RFC2364 PPP over ATM ALL5 (PPPoA)

RFC2516 PPP Over Ethernet (PPPoE)

RFC1577/2225 Classical IP and ARP over ATM (IPoA)

MER (a.k.a IP over Ethernet over AAL5)

Support ALG (Application Level Gateways)

ITU G.992.5 (ADSL2+)

ITU G.993.2(VDSL2)

ITU-T G.9700/ G.9701(G.fast)

G.fast Features

G.fast with crosstalk cancellation (vectoring) in DS

Full frequency band up to 106 MHz in G.fast

Support G.vector

Management

TR-069 Device Management

TR-098/181 Data Models

TR-106 Generic Device Mode

TR-111 LAN Device

Management Device Configuration, Management and Update

Web based GUI

Command Line Interface via serial port, telnet

Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)

Security :

Three-level login including local admin, local user, and remote technical support access

Service access control based on incoming interface: WAN or LAN

Service access control based on source IP addresses

Protect DOS attacks from WAN: SYN flooding, IP surfing, ping of Death, fragile, UDP ECHO (port 7), teardrop, land

PAP (RFC1334), CHAP (RFC1994), MSCHAP for PPP session

IP filter, Parental control

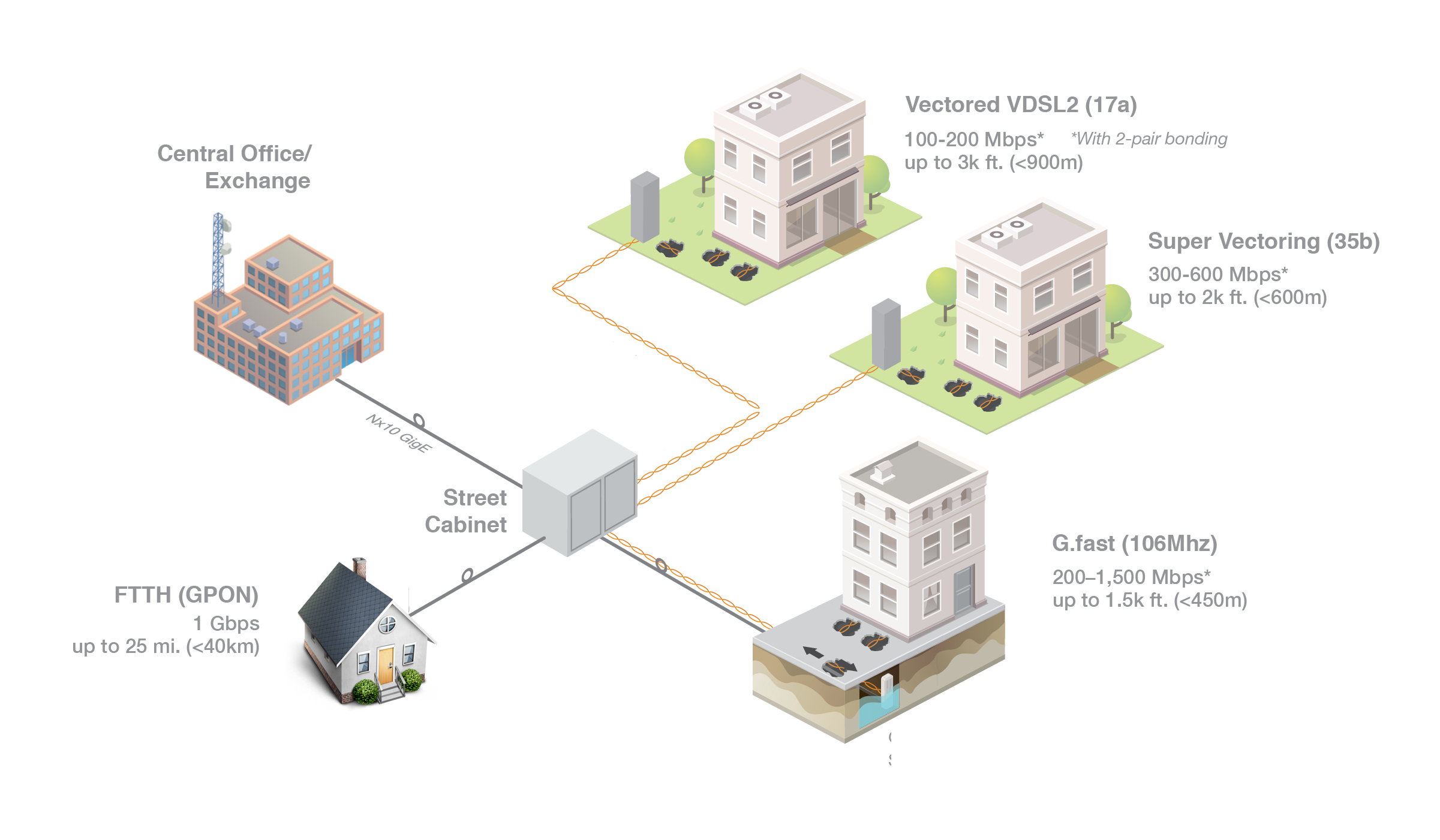

Applications
