highlights
  • 128x40 pixel graphical LCD display
  • Single SIP account, up to 2 call appearances, 3 XML programmable context-sensitive soft keys, 3-way conference
  • Phonebook with up to 500 contacts and call history with up to 200 records
  • Automated personal information service (e.g., local weather), personalized music ring tone/ring back tone
  • Dual switched auto-sensing 10/100Mbps network ports, integrated PoE (GXP1165 only)
  • Automated provisioning using TR-069 or AES encrypted XML configuration file, SRTP and TLS for advanced security protection, 802.1x for media access control
resources spotlight

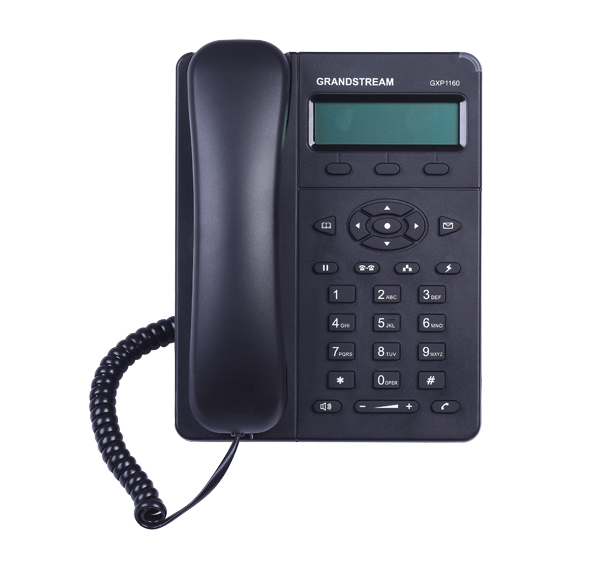

  • GXP1160/1165 is a next generation small-to-medium business IP phone that features single SIP account, up to 2 call appearances, a 128x40 graphical LCD, 3 XML programmable context-sensitive soft keys, dual network ports with integrated PoE (GXP1165 only), 3-way conference, and Electronic Hook Switch (EHS) with Plantronics headsets. The GXP1160/1165 delivers superior audio quality, rich and leading edge telephony features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms. It is a perfect choice for small-to-medium businesses looking for a high quality, feature rich IP phone with highly affordable cost.
  • 128x40 pixel graphical LCD display
  • Single SIP account, up to 2 call appearances, 3 XML programmable context-sensitive soft keys, 3-way conference
  • Dual switched auto-sensing 10/100Mbps network ports, integrated PoE (GXP1165 only)
  • Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, , TFTP, NTP, STUN, SIMPLE, TR-069, 802.1x, IPv6
  • Networking Interfaces Dual switched 10/100Mbps ports, integrated PoE (GXP1165 only)
  • Graphic Display 128x40 graphical LCD display
  • Feature Keys 1 SIP account, 3 XML programmable context sensitive soft keys, 5 navigation/menu/volume keys, 9 dedicated function keys for PHONEBOOK, MESSAGE (with LED indicator), HOLD, TRANSFER, CONFERENCE, FLASH, SPEAKERPHONE, VOLUME, SEND/REDIAL
  • Voice Codec Support for G.723.1, G.729A/B, G.711ยต/a, G.726-32, G.722 (wide-band), iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
  • Telephony Features Hold, transfer, forward, 3-way conference, downloadable phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones, server redundancy and fail-over
  • Headset Jack RJ9, supporting Electronic Hook Switch (EHS) with Plantronics headsets
  • Wall Mountable Yes
  • Base Stand Yes, 1 angle position available
  • QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES encrypted configuration file, SRTP, TLS, 802.1x media access control
  • Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese, etc.
  • Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
  • Power and Green Energy Efficiency Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: +5VDC, 800mA Integrated Power-over-Ethernet (802.3af,GXP1165 only) Max power consumption 2.5W (universal power adapter) or 3W (PoE)
