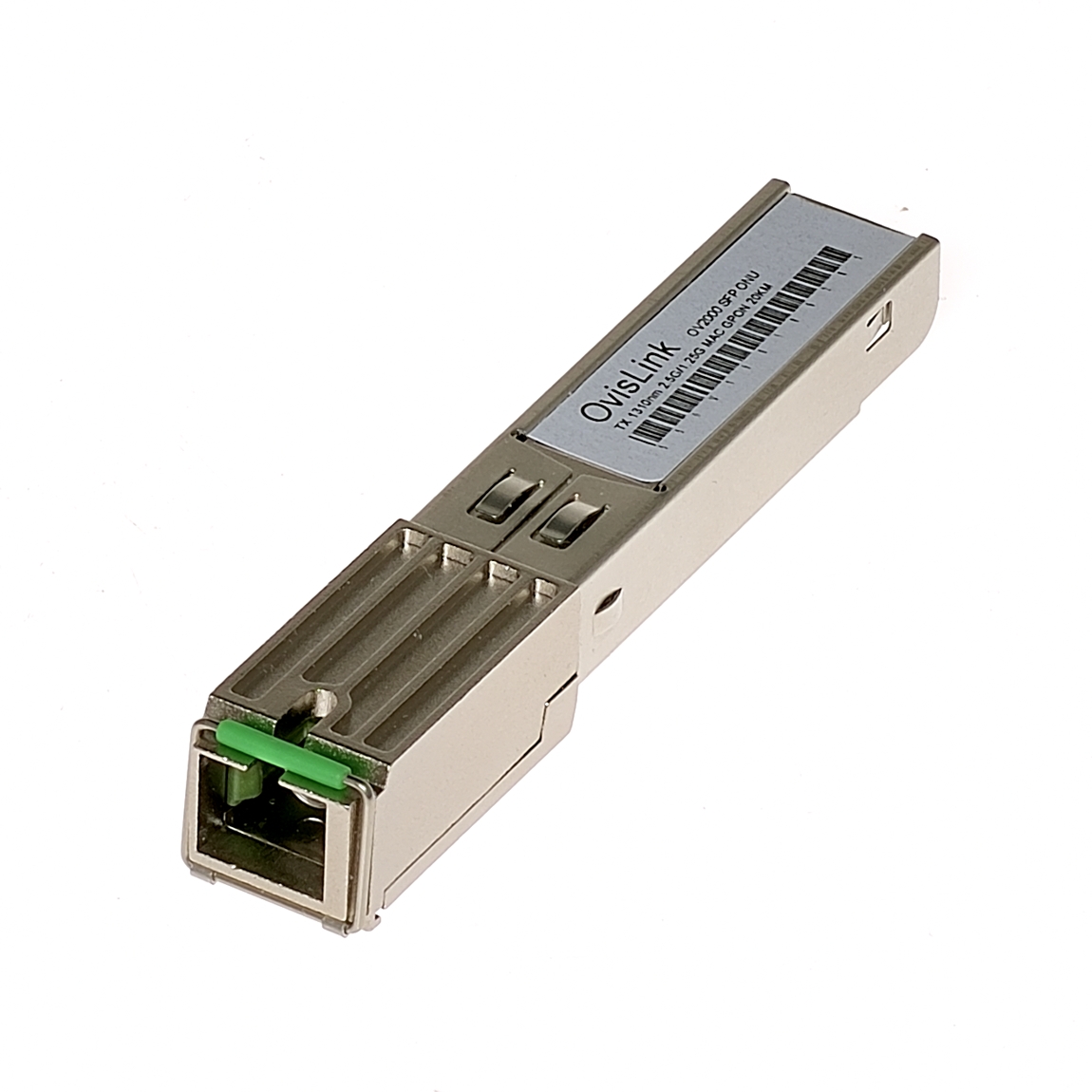

Ovislink Pluggable Optics (SFP GPON ONU)

OV2000

  • Single-fiber ONU
  • Optical Connector: SC
  • Distance 20Km
  • Tx Central Wavelength: 1310 nm
  • Rx Central wavelength: 1490 nm
  • SFF8472 Compliant


The Small Form-Factor Pluggable (SFP) is a single-mode fiber SFP that plugs into an ADTRAN optical interface designed to accept SFPs. The SFP provides a single optical interface to a physical interface, and is intended for use with a Gigabit Passive Optical Network (GPON) module.Installed into an appropriate module, the SFP provides a GPON interface to the supporting system.

OV2000 is designed for use in GPON ONT applications and has a Digital Diagnostic Monitoring (DDM) function with internal calibration.

  • Module Type:SFP
  • SM/MM: Singel Mode fiber
  • Single-fiber
  • SC connector
  • GPON ONU application
  • 20km distance
  • SFF 8472 Compliant
  • Optical Budget:26 dB (+/-1)
  • Tx Central Wavelength: 1310 nm
  • Tx Output optical power: +0.5 dBm to +5.0 dBm
  • Tx Spectral width: 1 nm
  • Rx Central wavelength: 1490 nm
  • Input optical power: –8.0 dBm to –27 dBm
  • Receiver Overload: –8 dBm
  • Receiver Sensitivity: –27 dBm
