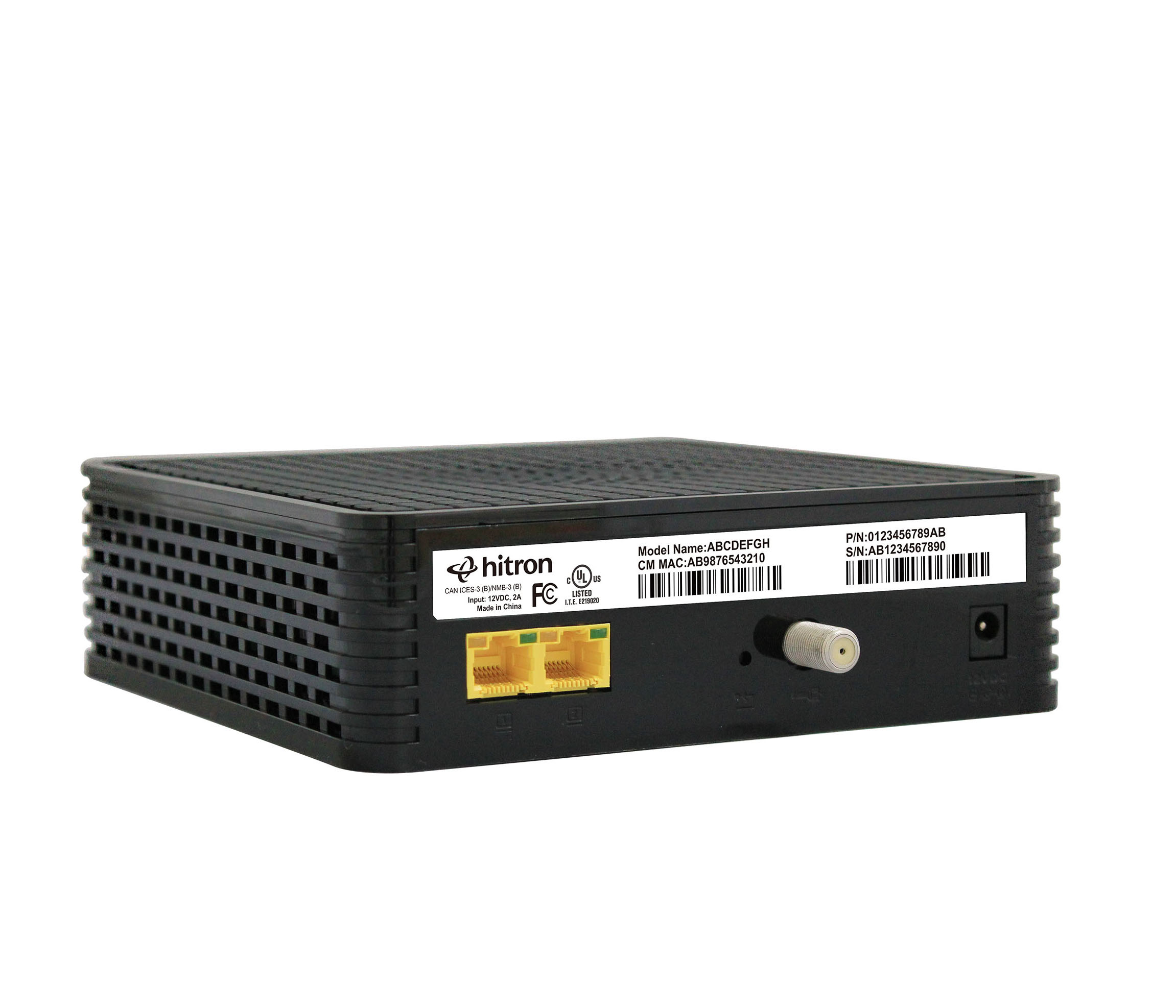

HITRON Docsis 3.1 Cable Modem

CODA45

  • DOCSIS 3.1 certified
  • Supports Business Services over DOCSIS
  • Full-featured, high bandwidth cable modem
  • Built in MoCA® immunity filter
  • Extensive operator control via configuration file and SNMP
  • Well-defined LEDs clearly display device and network status
  • Fixed 5-85 MHz Upstream


The CODA-45 is the perfect choice for cable operators who want to offer high-speed and economic broadband access to their customer base. It delivers speeds up to 1.97Gbps based on 2 GigE ports with two bonded downstream channels over its DOCSIS interface.
The CODA-45 allows MSOs to offer their customers various broadband applications such as telecommuting, HD and UHD video on demand over IP connectivity to a small office/home office (SOHO), high-speed residential Internet access, interactive multimedia services, etc.
The CODA-45 is an intelligent device that enhances its basic data transmission features with IPv6 support, which makes it especially suitable for the transmission of data based on this protocol.
Installation of the CODA-45 is quick, straight-forward, and can be carried out by the end-user. Once connected, the built-in TFTP client automatically gets the IP address and configuration data from the network server without human intervention. A browser-based utility allows convenient viewing of key network statistics and SNMP support provides total remote control over the device.

  • Offering high bandwidth with advanced multimedia services, new IPTV alternatives
  • DOCSIS 3.1 certified
  • DOCSIS/EuroDOCSIS 3.0 backwards compatibility
  • DOCSIS 3.0 cable modem offering 32 bonded downstream and 8 bonded upstream channels.
  • DOCSIS 3.1 2x2 multi-carrier OFDM
  • a fully integrated up to 1.2 GHz full band capture Wideband tuner
  • 2 ports GEthernet router
  • MPEG2 over IP Encapsulation solution
  • Reliable high-performance platform
  • Advanced power management and power control
  • Powerful processor and architecture
  • Supports IPv4 and IPv6
  • Advanced Power Control
  • BPI+ communications privacy to support secure data exchange between modems cable operator's servers
