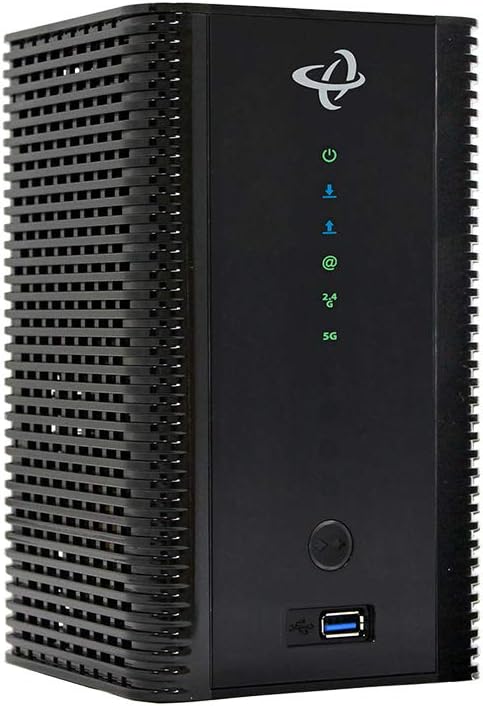

DOCSIS 3.1 Cable Modem Router with 802.11ac WiFi

CODA4680

  • DOCSIS® 3.1 compliant
  • DOCSIS 3.1 2×2 multi-carrier OFDM
  • DOCSIS 3.0 32×8 channel bonding
  • Switchable 5-42/5-85MHz Upstream
  • Wi-Fi 3×3 2.4 GHz 802.11n and 4×4 5 GHz 802.11ac Wave 2 dual band MU-MIMO
  • One USB 3.0 host, supporting Network Attached Storage (NAS) functionality
  • Integrated DLNA Media Server with support for video, audio and image serving
  • Extensive operator control via configuration file and SNMP
  • TR-069 and HNAP for easy setup and remote management


The CODA-4680 has the capability to receive 10 Gbps* based on 2 x OFDM + 32 QAM over its DOCSIS 3.1 interface. The integrated Wi-Fi 3×3 2.4 GHz 802.11n and 4×4 5 GHz 802.11ac Wave 2 dual band MU-MIMO Access Point significantly improves customer experience extending range and coverage with blazing speeds. Its switchable upstream (5~42/5~85MHz) offers the possibility of flexible integration to existing networks.

  • Multi-Gigabit Speeds with DOCSIS 3.1
  • DOCSIS 3.1 certified
  • Switchable 5-42/5-85MHz Upstream
  • Wi-Fi 3×3 2.4 GHz 802.11n and 4×4 5 GHz 802.11ac Wave 2 dual band MU-MIMO
  • WiFi security is pre-configured and pre-enabled thanks to WiFi Protected Setup (WPS)
  • DOCSIS 3.0 Compatibility

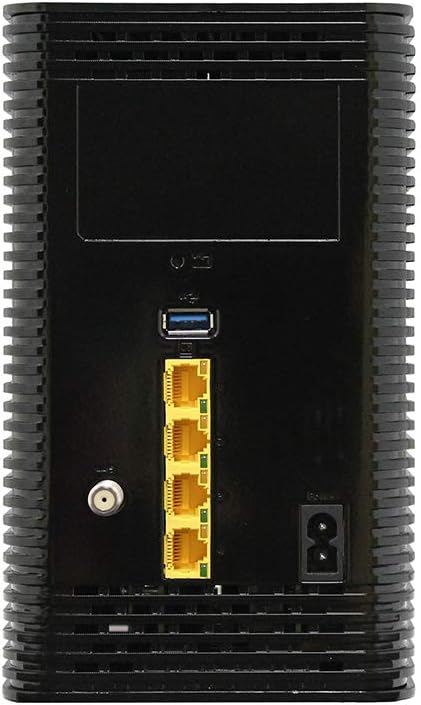

  • Four Gigabit Ethernet Ports
  • Easy to Setup and Manage
  • Built-in TFTP client obtains the IP address and configuration data from the network server automatically
  • SNMP, TR-069 and HNAP support enable complete remote control and management.
  • Integrated DLNA Media Server with support for video, audio and image serving
