OvisLink WiFI 6 AX5400 Full Gigabit VDSL2/FTTH Muti-Access Gateway with SFP Port
OV978WAX
- Multi Internet Access with xDSL/WAN/SFP/GPON
- WiFi 6 2.4GH 2X2 600Mbps & 5GH 4X4 4.8Gbps

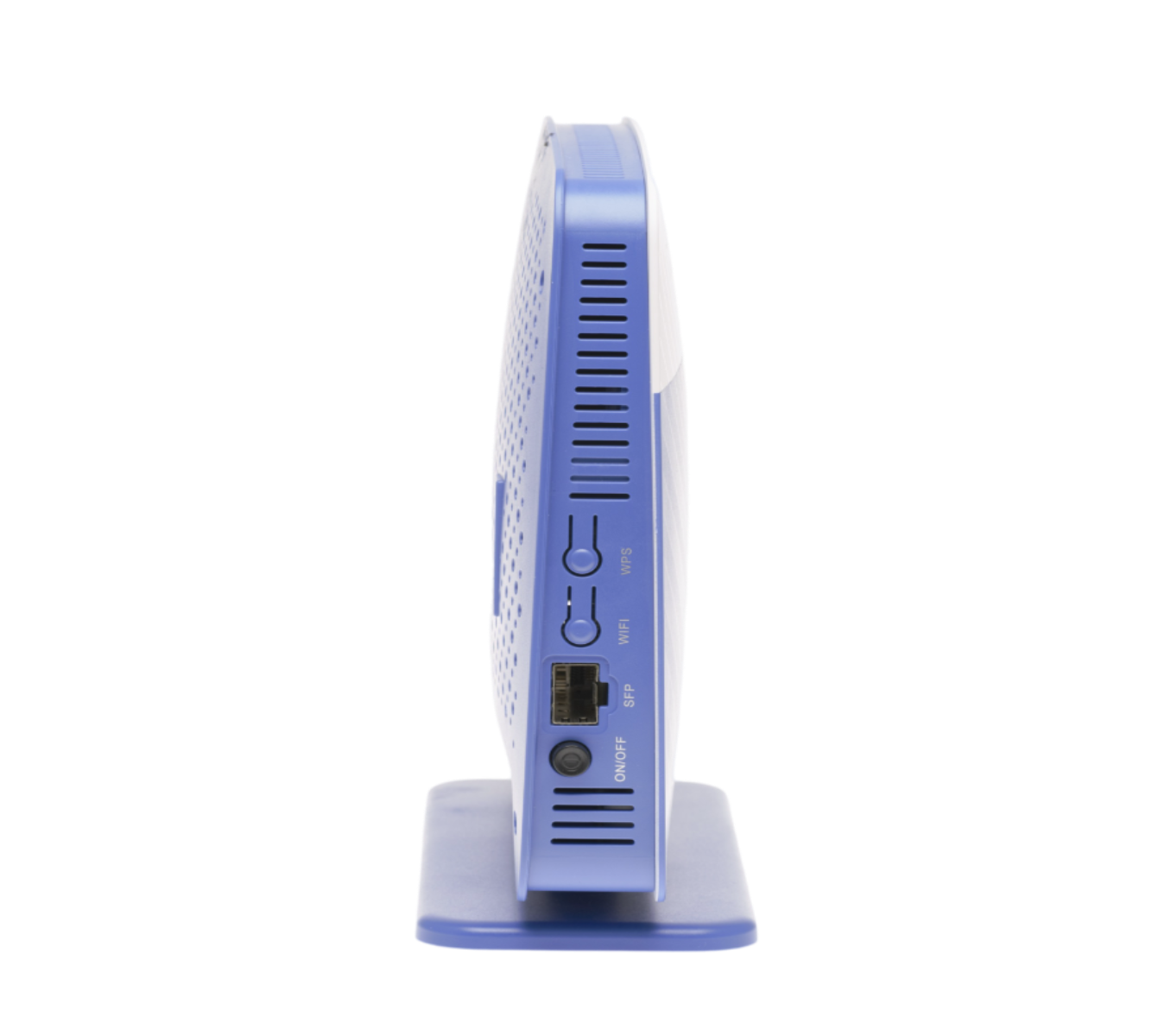

- WPS and Wireless on/off buttons
- 4 Gigabit Ethernet Ports
- 1 Gigabit WAN Port
- 1 fiber Port for the SFP of GPON/ActiveEthernet or Generic SFP
- Compatible with all major DSLAMs
- 1xUSB3.0 Port to Provide Network Sharing
- Support remote access control
- IPv6 Ready
- VDSL2 profile up to 35(b)
- ADSL/ADSL2+ compatible
- TR-069 Device Management
- ITU K.21 Requirments (Enhanced Lightning Protection)
The OV978WAX is a high-speed dual-band Wireless HTTx multi access Gateway , which is an advanced all-in-one gateways that also supports ADSL/VDSL 35(b) single line. OV978WAX will be used in a Fiber To The Distribution set-up in which it must be able to interface to the Distribution Point Unit in the Wide Area Network via the latest ITU-T standard of G.fast. It can provide users with broadband Internet access capability, high quality voice & video services. OV978WAX is the solution that can provide gigabit speeds by using both copper and fiber. OV978VAX supports 802.11b,g,n,ac,ax 2.4GHz band and 5GHz band by using two 2.4G internal WIFI antennas and four 5G internal WIFI antennas.
- User-friendly GUI for web configuration
- Compliant with IEEE 802.11b, 802.11g, 802.11n, 802.11ac and 802.11ax standard for 2.4GHz and with IEEE 802.11ax for 5GH Wireless LAN up to 5.4Gbps
- 4x4 MIMO @ 5GHz 4.8Gbps and 2x2 MIMO @ 2.4GHz 600Mbps
- 4 Gigabit Ethernet Ports
- 1 Gigabit WAN Port
- 1 SFP fiber Port for the SFP of GPON/ActiveEthernet or Generic SFP
- Configurable as a DHCP server on your network
- Compatible with all standard Internet applications
- Industry standard and interoperable DSL interface
- Support virtual server, IP filter, DMZ host, and much more
- Simple web-based status page displays a snapshot of system configuration, and links to the configuration pages
- Downloadable flash software updates
- Remote management with TR069
